Which model is this AES board? Quel modèle est cette AES ?

4 participants

Page 1 sur 2 1, 2  Suivant

Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Which model is this AES board? Quel modèle est cette AES ?

Message  alex2005 Ven 3 Juin 2022 - 9:45

Bonjour!

J'ai récemment acheté cet AES et je ne sais pas de quel modèle il s'agit.
Il affiche 60hz mais la région semble être l'UE, basée sur l'écran Street Hoop (ce jeu a 3 régions pour autant que je sache), également par exemple Samurai Shodown 2 a des textes en anglais et du sang vert.
De plus, il affiche le plein écran (pas de bordures noires) et sa vitesse est identique à mes autres systèmes japonais.
Dans la boîte, il est écrit "PAL-B".
Je ne vois aucune trace que la carte ait été modifiée de quelque manière que ce soit, donc je me demande de quel modèle il s'agit et comment puis-je résoudre le problème de synchronisation mineur en haut de l'écran lorsque je joue avec un câble péritel (avec RF et composite, le l'image semble bonne, pas de problème là-bas). J'ai essayé le câble péritel SNK officiel et d'autres que j'ai à la maison, et tous les câbles ont le même problème.

https://photos.app.goo.gl/Xh84d1pGtYi7neDr5
https://photos.app.goo.gl/DZbBa9BiR7yrjTDfA
https://photos.app.goo.gl/xq5U2XM4HeUMQxL66
https://photos.app.goo.gl/m2ij3HBs847zwhhq5
https://photos.app.goo.gl/NNzhAPcgjKPHgcTe6
https://photos.app.goo.gl/dSUJ2xhaQ53rDh7CA

J'apprécierais tout commentaire, car je suis un peu confus Very Happy

Merci beaucoup!

--- english below, because I am not native french speaker and I need to use google translate for french, so maybe english is easier  Very Happy

Hello!
I recently bought this AES and I am unsure which model it is.
It displays 60hz but the region seems to be EU, based on the Street Hoop screen (this games has 3 regions as far as I know), also for example Samurai Shodown 2 has english texts and green blood.
Also it displays full screen (no black borders) and speed wise its identical to my other japanese systems.
In the box, it says "PAL-B".
I dont see any traces that the board has been modified in any way, so Im wondering which model is this, and how can I solve the minor sync issue on the top of the screen when playing with Scart cable (with RF and composite, the image looks good, no problem there). I tried the official SNK scart cable and others I have at home, and all cables have the same issue.

https://photos.app.goo.gl/Xh84d1pGtYi7neDr5
https://photos.app.goo.gl/DZbBa9BiR7yrjTDfA
https://photos.app.goo.gl/xq5U2XM4HeUMQxL66
https://photos.app.goo.gl/m2ij3HBs847zwhhq5
https://photos.app.goo.gl/NNzhAPcgjKPHgcTe6
https://photos.app.goo.gl/dSUJ2xhaQ53rDh7CA

I would appreciate any feedback, because I am a bit confused Very Happy

Thanks a lot!
alex2005
alex2005
Visiteur confirmé
Visiteur confirmé

Messages : 60
Date d'inscription : 20/06/2020

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  Frizen Ven 3 Juin 2022 - 10:59

Hi there,

Inside the red circle you will see the model. As far as I know you have one of the first (and hence best) ones: NEC

Which model is this AES board? Quel modèle est cette AES ? 20220510

The region is not determined by the game but by the console, which in your case is PAL. All games are internally identical, the only thing that changes are the cosmetics: sticker, manual and insert.

About your issue I'm not an expert, but there a lot of them here, I'm sure they will help you

Good luck
Frizen
Frizen
1000 Mega Shock
1000 Mega Shock

Messages : 2328
Date d'inscription : 27/05/2017

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  kazki Ven 3 Juin 2022 - 12:11

This is a factory repaired NeoGeo AES with a NEC NEO-AES motherboard

Originally the console’s power supply was a 5V but after the factory repair, they added a small pcb with a golden coil (the one on the upper side of cart slot), so your console now is a 9v I guess although the sticker on the underside may indicate a 5v psu

In AES world there are only 2 bioses : Japan bios Neo-PO and export bios Neo-EPO, only MVS had 3 bios regions : JP, US and Eur (which is equivalent to the Export bios)

On the upper right side of your console you should find the Bios and usually it’s printed on it

Judging by the small sync issue you have on the top of your screen, you may use a better scart cable that use CSync instead of composite sync, I had the same issue and solved it using a csync rgb cable
Which model is this AES board? Quel modèle est cette AES ? -byISw33V04r53KgInP4v0bq30SaeLiTfjLbhDJLPDYwYm-1b96lyAGDKQH6GP0K816FfkYWm085aQjrON9gIo5GSzxi607bNXNlyJBlm5Ybt2YAq9_mDkNOJ_b3zd7ombCUJOBC9po=s428-no
kazki
kazki
1000 Mega Shock
1000 Mega Shock

Système(s) : AES MVS PGM CPS2 NAOMI
Messages : 7715
Date d'inscription : 22/10/2018

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  Ikkyô Ven 3 Juin 2022 - 13:06

It’s in fact one of the first motherboard to come out. I've the same model ( except minor details )  Very Happy
Law serial : precisely under 30,000 first marketed.
You'll find the number on the sticker located on the back of the console.

C'est effectivement l'un des premières cartes mère. J'ai la même.
Première série : en-dessous des premières 30 000 commercialisées à travers le monde.
Tu trouveras d'ailleurs son numéro de série sur l'autocollant au dos de la console pour confirmer.


Dernière édition par Ikkyô le Ven 3 Juin 2022 - 13:30, édité 1 fois
Ikkyô
Ikkyô
1000 Mega Shock
1000 Mega Shock

Système(s) : SNK-CAPCOM-SEGA
Messages : 1989
Date d'inscription : 19/07/2018
Localisation : Planète bleue

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  alex2005 Ven 3 Juin 2022 - 13:27

Thank you for the answers! so seems a strange model indeed.

So this is a PAL EU model, that displays at 60hz? I had the impression all PAL models were 50hz, with the black borders. Are the first models an exception? Because it runs as fast as my other JPN models Rolling Eyes
alex2005
alex2005
Visiteur confirmé
Visiteur confirmé

Messages : 60
Date d'inscription : 20/06/2020

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  kazki Ven 3 Juin 2022 - 14:15

There were some officially imported consoles in Europe and to comply to the PAL standart, those were underclocked at 50Hz

In every case they took an International AES with Export Bios and modded it to make it run at 50, that means the AES that aren’t officially imported in Europe were 60Hz with either Jap bios or Export bios
kazki
kazki
1000 Mega Shock
1000 Mega Shock

Système(s) : AES MVS PGM CPS2 NAOMI
Messages : 7715
Date d'inscription : 22/10/2018

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  alex2005 Ven 3 Juin 2022 - 14:30

Oooh nice, great to know! I was not aware of these details, thanks for sharing! So I guess I got a "non-officially" imported version. But happy to have one!
Just curious, is the PCB in any way the same as the rental system, or its different?
alex2005
alex2005
Visiteur confirmé
Visiteur confirmé

Messages : 60
Date d'inscription : 20/06/2020

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  kazki Ven 3 Juin 2022 - 15:53

as far as I know the motherboard you have is the so called rental revision, you have shielding under the hood, you have the PL24I5 daughter board and you even have the replacement power regulator on a small daughter board, because it seems to have been factory repaired at some time, someone might have plugged a 12v psu on a 5v console

alex2005 a écrit:Oooh nice, great to know! I was not aware of these details, thanks for sharing! So I guess I got a "non-officially" imported version. But happy to have one!
Just curious, is the PCB in any way the same as the rental system, or its different?
kazki
kazki
1000 Mega Shock
1000 Mega Shock

Système(s) : AES MVS PGM CPS2 NAOMI
Messages : 7715
Date d'inscription : 22/10/2018

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  alex2005 Ven 3 Juin 2022 - 16:13

Thank you all for the clarifications! I guess its worth to keep it as it is then Smile
I will buy a scart sync cable and see how this goes Smile
Funny enough I was looking for a 50hz model and just got this one from a shop. the seller wasnt aware of this either. Worth the surprise!
alex2005
alex2005
Visiteur confirmé
Visiteur confirmé

Messages : 60
Date d'inscription : 20/06/2020

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  kazki Ven 3 Juin 2022 - 19:08

if you are confortable enough with your soldering skills and IF the Din8 plug can be opened, you just need to desolder the sync from pin 3 and solder it to pin 7

Which model is this AES board? Quel modèle est cette AES ? WP5hjta

you will lose the composite signal but would get much better RGBS video quality
kazki
kazki
1000 Mega Shock
1000 Mega Shock

Système(s) : AES MVS PGM CPS2 NAOMI
Messages : 7715
Date d'inscription : 22/10/2018

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  alex2005 Ven 3 Juin 2022 - 22:43

Im a total looser in soldering Smile im attaching a video of the board. Im just curious how would the mod to 50hz and region be in this specific board? Because i dont see any signs of ntsc/pal and region switch.

https://photos.app.goo.gl/j9gHYPDd81aW8Ayt9
alex2005
alex2005
Visiteur confirmé
Visiteur confirmé

Messages : 60
Date d'inscription : 20/06/2020

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  kazki Sam 4 Juin 2022 - 15:27

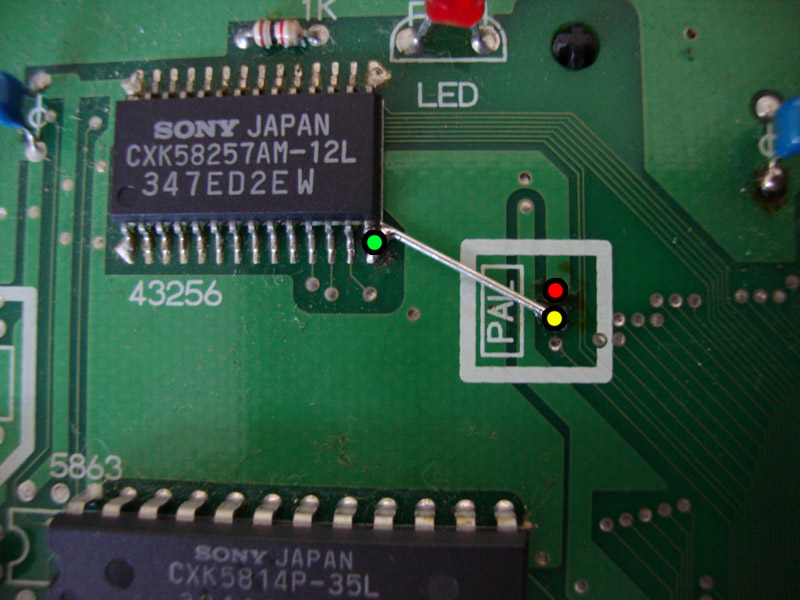

Just solder a strap as shown, however the picture was taken from another rev I think

It seems every motherboard revision starting from NEO-AES3-3 have the PAL pins
Why would you want a 50hz Neogeo ?? I’m not even sure you could make your NEO-AES motherboard run at 50

Which model is this AES board? Quel modèle est cette AES ? Full
kazki
kazki
1000 Mega Shock
1000 Mega Shock

Système(s) : AES MVS PGM CPS2 NAOMI
Messages : 7715
Date d'inscription : 22/10/2018

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  alex2005 Sam 4 Juin 2022 - 16:47

Thank you! Yeah indeed this revision looks slighlty different.
i will not mod it and just leave it as it was originally manufactured.
My original intention was to buy a 50hz unit for collection purposes only, and when i received it thanks to you all i knew there was an export 60hz model too Smile
All my other aes are japanese 60hz, so my quest for a pal 50hz will continue a bit more Wink
On monday i will test with the new sync scart cable and see if the sync issue is gone Smile
Thanks again for all the knowlegde sharing!
alex2005
alex2005
Visiteur confirmé
Visiteur confirmé

Messages : 60
Date d'inscription : 20/06/2020

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  kazki Sam 4 Juin 2022 - 17:43

Great I hope your new cable would solve your issue (not really visible on consumer CRT anyway)

You seem to be living in Spain you may contact retrocables.es and especially make a order for a Csync neogeo cable, as far as I know they make the cable per order, I had to wait a few weeks before they delivered, but the cable I received was composite sync, I opened the Din8 and put the sync on Csync and my problems were solved Smile
kazki
kazki
1000 Mega Shock
1000 Mega Shock

Système(s) : AES MVS PGM CPS2 NAOMI
Messages : 7715
Date d'inscription : 22/10/2018

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  kazki Sam 4 Juin 2022 - 21:33

care to post a picture of your top cover of your AES ??

a 1st gen should have those typos, during the life span of the Neogeo the typo changed over time
pay special attention to the letter "G" and the letter "O"
Which model is this AES board? Quel modèle est cette AES ? 110

Which model is this AES board? Quel modèle est cette AES ? 210

original thread on this subject is here : https://www.neogeo-system.com/t13010-le-saviez-vous-les-inscriptions-de-nos-consoles-aes-ont-change-suivant-les-revisions

as you can see the lines PRO GEAR SPEC are different
kazki
kazki
1000 Mega Shock
1000 Mega Shock

Système(s) : AES MVS PGM CPS2 NAOMI
Messages : 7715
Date d'inscription : 22/10/2018

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  alex2005 Sam 4 Juin 2022 - 22:05

Thank you, yes sure i can, i think its the rental one:
https://photos.app.goo.gl/RstzF9xpa6vRh52QA

For the cable i ordered one from arcade express in spain "Cable Express Pro RGB SCART Neo Geo AES / CDZ" - i hope it will work Wink
Else i will reach retrocables and see what happens Wink
alex2005
alex2005
Visiteur confirmé
Visiteur confirmé

Messages : 60
Date d'inscription : 20/06/2020

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  kazki Sam 4 Juin 2022 - 22:08

the letter G has showed it was a 1st rev "rental" one my friend
I don't know cable express, otherwise I could send you my modded retrocables rgb+stereo cable to you, provided I find it in my mess LOL

alex2005 a écrit:Thank you, yes sure i can, i think its the rental one:
https://photos.app.goo.gl/RstzF9xpa6vRh52QA

For the cable i ordered one from arcade express in spain "Cable Express Pro RGB SCART Neo Geo AES / CDZ" - i hope it will work Wink
Else i will reach retrocables and see what happens Wink
kazki
kazki
1000 Mega Shock
1000 Mega Shock

Système(s) : AES MVS PGM CPS2 NAOMI
Messages : 7715
Date d'inscription : 22/10/2018

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  alex2005 Sam 4 Juin 2022 - 22:20

kazki a écrit:the letter G has showed it was a 1st rev "rental" one my friend
I don't know cable express, otherwise I could send you my modded retrocables rgb+stereo cable to you, provided I find it in my mess LOL

alex2005 a écrit:Thank you, yes sure i can, i think its the rental one:
https://photos.app.goo.gl/RstzF9xpa6vRh52QA

For the cable i ordered one from arcade express in spain "Cable Express Pro RGB SCART Neo Geo AES / CDZ" - i hope it will work Wink
Else i will reach retrocables and see what happens Wink

Thank you for the confirmation! I was not aware of the different letter prints.
For the cable, i really appreciate the offer. Lets wait till monday/tuesday until i receive the cable i ordered. Will keep you posted Wink
alex2005
alex2005
Visiteur confirmé
Visiteur confirmé

Messages : 60
Date d'inscription : 20/06/2020

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  kazki Sam 4 Juin 2022 - 22:24

no prob and from your video of your motherboard you do have an EXPORT BIOS which is the same as the International MVS BIOS : your Bios is NEO-EPO (E as in Export)
kazki
kazki
1000 Mega Shock
1000 Mega Shock

Système(s) : AES MVS PGM CPS2 NAOMI
Messages : 7715
Date d'inscription : 22/10/2018

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  alex2005 Lun 6 Juin 2022 - 13:45

The cable arrived, I ordered this but the NeoGeo model - i can't find it anymore on their website, maybe I got the last one Smile :

https://www.arcadexpress.com/es/cableado-consolas-rgb-av-scart/34-cable-rgb-scart-para-mega-drive-1-y-master-system.html

and it works perfect!

I added a video:

AoF2 Geese Video Scart Sync

So, another mystery solved thanks to you guys! Which model is this AES board? Quel modèle est cette AES ? 1f600

I will keep searching for the 50hz model, the quest will continue Laughing


Dernière édition par alex2005 le Lun 6 Juin 2022 - 14:46, édité 1 fois
alex2005
alex2005
Visiteur confirmé
Visiteur confirmé

Messages : 60
Date d'inscription : 20/06/2020

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  kazki Lun 6 Juin 2022 - 14:13

You took a MegaDrive Cable and plugged into your AES ?? Definitely NOT recommanded though it can plug

The Din8 SNK is a C shape (called Din 8 270) where as the Din 8 SEGA  is U shaped

It can work but will definitely break you connector in the long run …

DIN 8 comparison

Which model is this AES board? Quel modèle est cette AES ? The-more-common-270-degree-8-pin-large-din-used-on-circle-1625211

http://retrocables.es/tienda/index.php?id_product=120&controller=product&id_lang=4
Try to contact retrocable.es and ask him whether he can plug the sync on pin 7

Edit : on the product page just select synch as CSYNC


Dernière édition par kazki le Lun 6 Juin 2022 - 14:26, édité 1 fois
kazki
kazki
1000 Mega Shock
1000 Mega Shock

Système(s) : AES MVS PGM CPS2 NAOMI
Messages : 7715
Date d'inscription : 22/10/2018

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  alex2005 Lun 6 Juin 2022 - 14:21

No no, i bought the neogeo aes model. I dont know why the aes model does not show on the website anymore Smile all good!
alex2005
alex2005
Visiteur confirmé
Visiteur confirmé

Messages : 60
Date d'inscription : 20/06/2020

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  kazki Lun 6 Juin 2022 - 19:51

glad to hear that your sync issue is solved with a Din 8 270 Neogeo cable, I'm just curious : just how many AES do you own ???

you're the first who want to collect a 50Hz AES, the majority of us just want to play (in 60Hz)

alex2005 a écrit:No no, i bought the neogeo aes model. I dont know why the aes model does not show on the website anymore Smile all good!
kazki
kazki
1000 Mega Shock
1000 Mega Shock

Système(s) : AES MVS PGM CPS2 NAOMI
Messages : 7715
Date d'inscription : 22/10/2018

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  alex2005 Lun 6 Juin 2022 - 20:08

Thank you!
I currently have 4 aes systems, all them running at 60hz. Three of them are the different japanese versions (2 with old style joystick and 1 with the new style controller).plus the rental version we just discovered Smile
My intention was to buy the 50hz model for collection purposes, as it was the original system i had 30 years ago Smile

alex2005
alex2005
Visiteur confirmé
Visiteur confirmé

Messages : 60
Date d'inscription : 20/06/2020

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  kazki Lun 6 Juin 2022 - 20:15

Lucky you, friend Smile

may I ask you your serial for the console we just discussed on this topic ?

alex2005 a écrit:Thank you!
I currently have 4 aes systems, all them running at 60hz. Three of them are the different japanese versions (2 with old style joystick and 1 with the new style controller).plus the rental version we just discovered Smile
My intention was to buy the 50hz model for collection purposes, as it was the original system i had 30 years ago Smile

kazki
kazki
1000 Mega Shock
1000 Mega Shock

Système(s) : AES MVS PGM CPS2 NAOMI
Messages : 7715
Date d'inscription : 22/10/2018

Revenir en haut Aller en bas

Which model is this AES board? Quel modèle est cette AES ? Empty Re: Which model is this AES board? Quel modèle est cette AES ?

Message  Contenu sponsorisé


Contenu sponsorisé


Revenir en haut Aller en bas

Page 1 sur 2 1, 2  Suivant

Revenir en haut

- Sujets similaires


Permission de ce forum:
Vous ne pouvez pas répondre aux sujets dans ce forum
